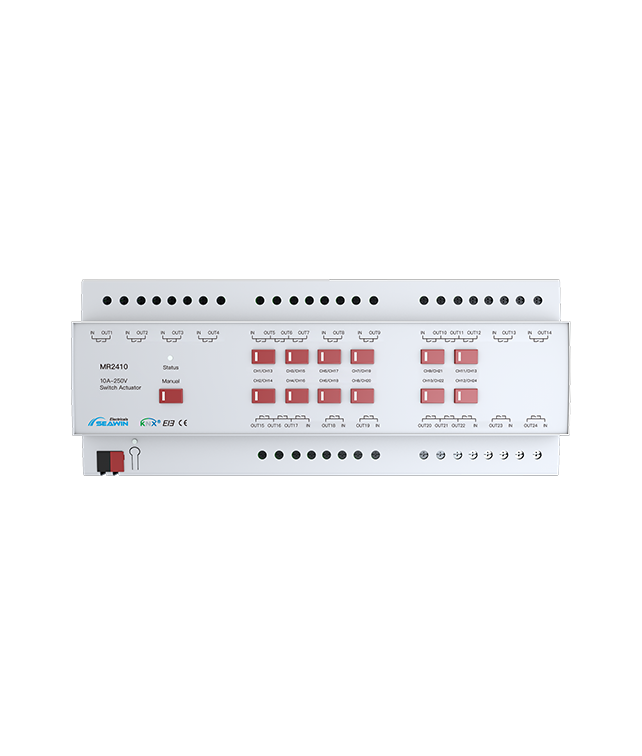

24-Channel Actuator
Modular installation actuator for robust multi-channel output control.
Functional Description
Key features and capabilities of the 24-Channel Actuator.
- (1) Independently control 24 loop lights/loads;
- (2) It has a manual key switch; the relay has a magnetic latching function
- (3) Delay on/off function;
- (4) Timing off and cycle switch functions;
- (5) With on-site save and restore functions;
- (6) Status value query and reply function;
- (7) Selection function of relay switching state after bus power failure and voltage recovery;
- (8) It has scene combination control and scene learning functions;
- (9) With logic operation function;
- (10) With interlocking group function and channel lock function;
- (11) It has the function of recording the number of relay switches;
- (12) The 4-way switch execution module has 2-way I/O dry contact input interfaces, which can input control commands such as switches, curtains, dimming, scenes, and fire protection;
- (13) I/O cable wiring distance: ≤10m
