16-Channel Actuators

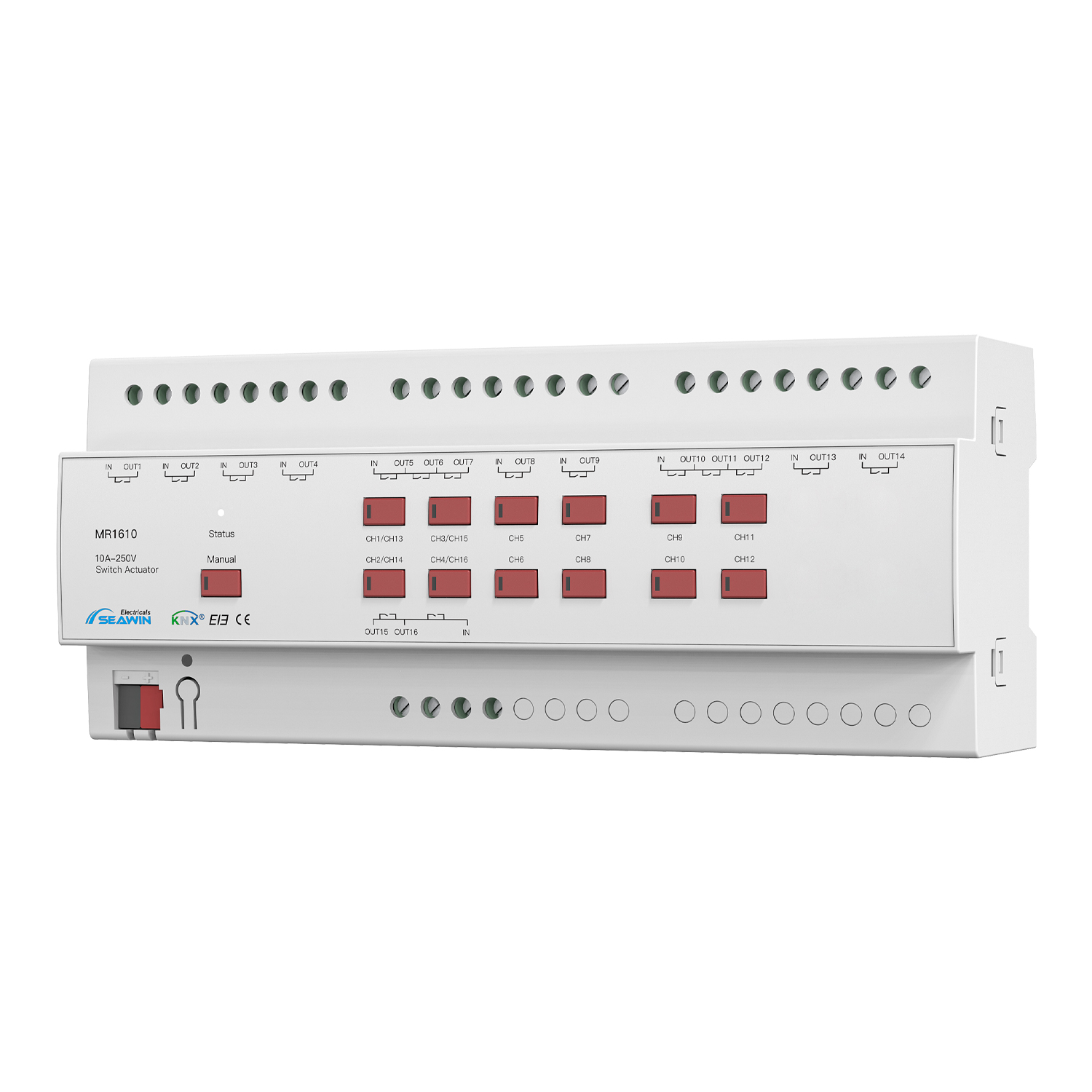

Model MX1610 modular installation actuator for robust multi-channel output control.
Functional Description
Key features and capabilities of the 16-Channel Actuator.
Switch Output
- (1) Independently control 16 loop lamps/loads;
- (2) With manual switch control;
- (3) With relay magnetic latching function;
- (4) With delay on/off function;
- (5) It has the function of timing off and cycle switch;
- (6) With on-site save and restore functions;
- (7) It has the function of status value query and reply;
- (8) It has scene combination control and scene learning functions;
- (9) With logic operation function;
- (10) With interlocking group function and channel lock function;
- (11) It has the function of recording the number of relay operations;
- (12) It has the function of selecting the relay switch state after bus power failure and voltage recovery;
- (13) It has an I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, and scenes, and can directly link fire emergency lighting;
FCA Output
- (1) With 4 independent outputs;
- (2) With manual switch control;
- (3) With relay magnetic latching function;
- (4) With delay on/off function;
- (5) Control the 4-control and 2-control fan coil units;
- (6) It can output heating and cooling according to automatic or manual control, and has the interlock function of heating and cooling;
- (7) According to the automatic or manual control of high, medium and low wind speed, it has the function of wind speed interlocking;
- (8) Selection function of relay switching state after bus power failure and voltage recovery;
- (9) The local wind speed and valve status can be reported;
- (10) It has an I/O dry contact input interface, which can input control commands such as switches, curtains, dimming, and scenes, and can directly link fire emergency lighting;
Curtain Output
- (1) With 16 independent outputs;
- (2) With manual switch control;
- (3) Scene combination control function can be set;
- (4) With on-site save and restore functions;
- (5) Status value query and reply function;
- (6) The selection function of the relay switch state after the bus voltage is restored;
- (7) It is possible to set the time in
Technical Specifications
Hardware characteristics and features for system integrators.
